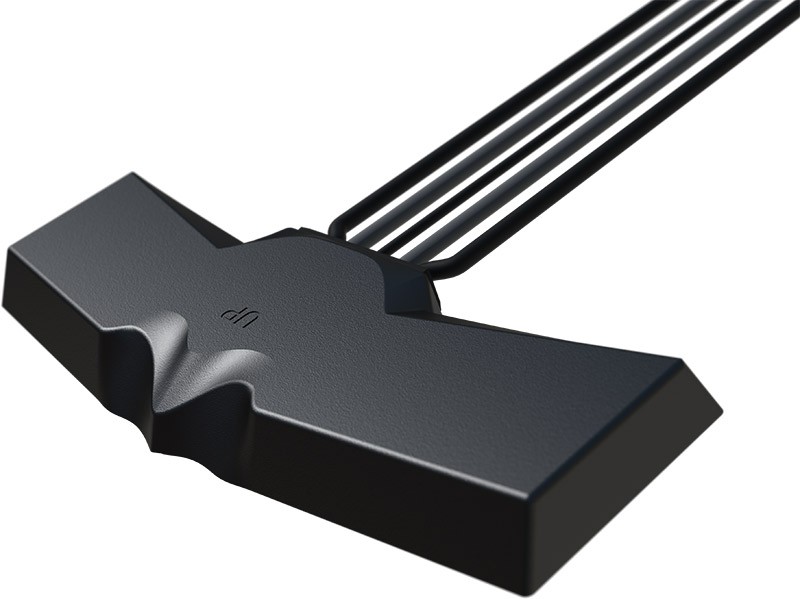

Panorama Fordonsantenn MIMO 4G + MIMO WiFi + GPS

The Panorama BATG series is designed for applications that require high-speed data with MIMO 4G and fallback 3G/2G along with positioning via GPS/GNSS and dual band 2.4/5.0GHz MIMO Wifi. The isolated dual 4G The /3G/2G antennas cover 698-960/1710-3800MHz and the efficient element design ensures a high connection speed and a robust communication link even in areas with poor coverage. The antenna is intended to be mounted on or under a dashboard but can also be mounted on a non-conductive surface. The BAT range is supplied with integrated cables, length 3 meters. Product sheet PDF (English) Frequency band 698-960 MHz 1710-3800 MHz Gain 2 dBi on 698-960 MHz 3 dBi on 1710-2170 MHz 5 dBi on 2500-3800 MHz Impedance 50Ω Frequency band WiFi 2x 2.4 and 5.0GHz Amplification WiFi 4dBi (2.4GHz) 5dBi (5.0GHz) Frequency band GPS 1562-1612 MHz Gain GPS 26dB GPS standard GPS/GNSS Connections Cell 2x SMA male WiFi 2x RP-SMA GPS 1x SMA male Cable length 3 meters Floor Plan Built-in Size 214 x 77 x 16, 5 mm Temperature -30 to +70°C Mounting Double-stick foam pad
